The ultimate straight-cutting partnership. We've paired our track-compatible R18CCSX 185mm Circular Saw (& 3-piece mini track combo) with our new ST2800-G2 , 2-piece 2.8m Universal Circular Saw Track - and cut a chunk off the price! You can keep the old style mini track for your rough cuts and lending to your mates, and keep the 2.8m track for your best jobs.

*This bundle contains both new and old track designs. The new G2 tracks are not designed to be used with the old orange mini-tracks, though it is possible to connect them using the old style black connecting bars to achieve an acceptable cut.

Included

• The new ST2800-G2, 2.8m, 2-piece Saw Track with Self-aligning Connecting Bars and Clamp kit (2x1400mm)

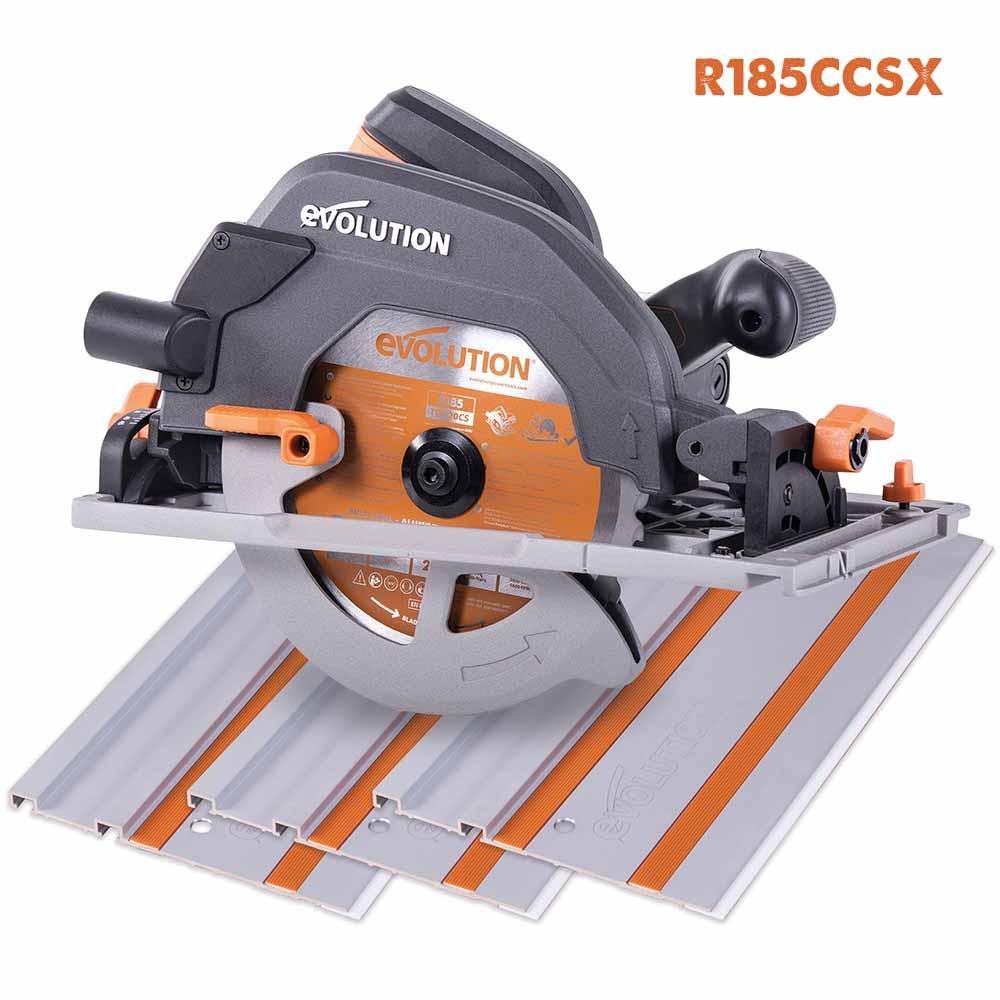

• R185CCSX Handheld Circular Saw with 3x340mm (1,100mm) Mini Track


ST2800-G2 2.8m Track Features

• 2.8m Total Assembled Length, (2x 1,400mm)

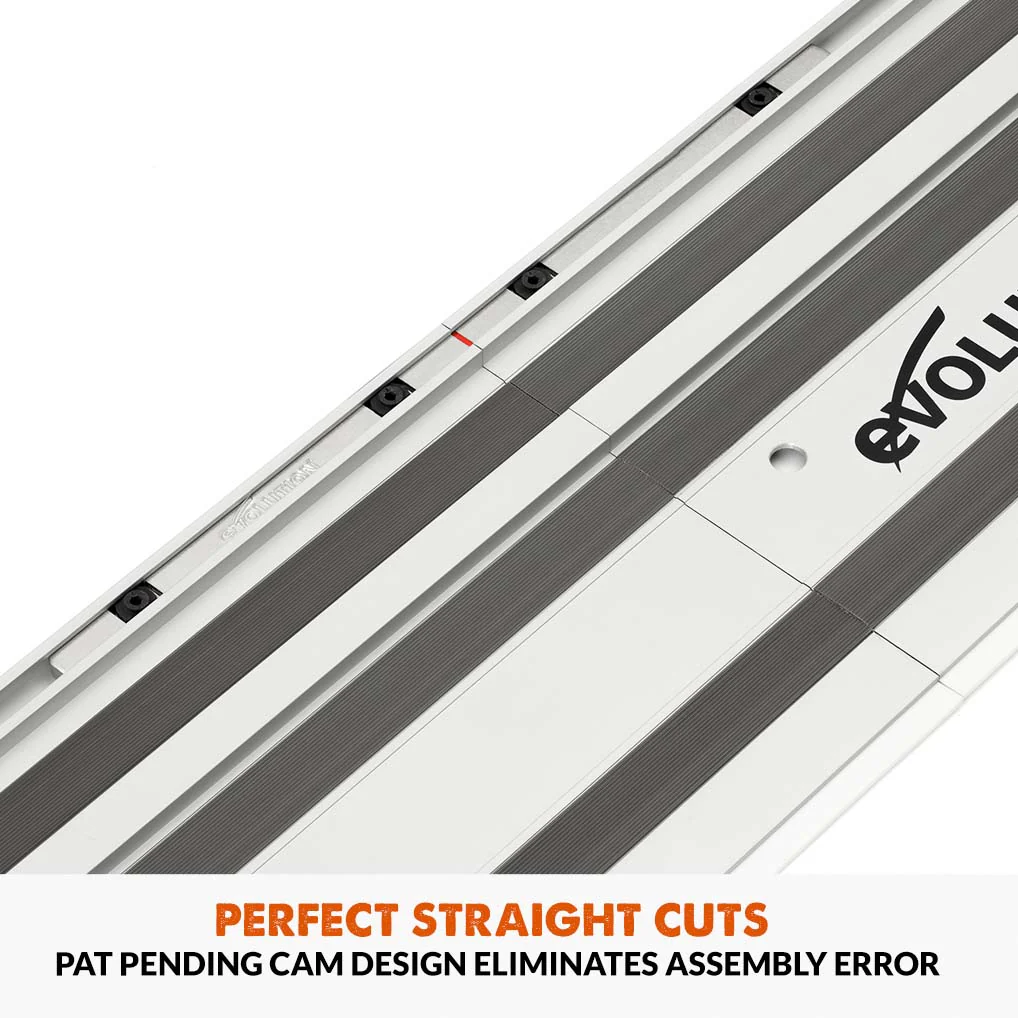

• Pat Pending Self Aligning Track Connecting Bars (x2)

• Guaranteed straight-cutting
• Accuracy with Track Square, 1mm run out or less (1x 1,400mm section)
• Perfect for 8x4 ft sheet materials.
• 2x Quick Adjust Track Clamps with rubber pad feet.
• 6063-T5 Anodized aluminium construction.
• Can be stored on-wall.
• Accessory Compatible.
• Extended Track and Accessory Carry Bag Included.
• Increased compatibility with 3rd party saws.
• * The new G2 tracks are not designed to be used with the older orange Tracks. Though it is possible to connect them using the old style black connecting bars we do not recommend this.


Circular Saw Features

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
• Reliable smooth square cutting every time in a variety of materials.
• Powerful 1600W hi-torque motor with optimized gearbox & blade system.
• 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
• Ergonomic, soft-grip handles to provide maximum control, versatility, and precision.
• Dust extraction port & adaptor included for vacuum compatibility.
• 2800mm Circular Saw Track included. Supplied in 2x pieces with connectors and clamps
• Compatible With Evolution's Cutting Tracks
• 2.8m track included in this bundle.
• Robust & sturdy construction with even weight distribution, weighing only 4.8kg
• Channelled airflow & base indicators ensure optimum visibility of your cutting line.
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
• 3 Year limited warranty.

Circular Saw Spec

Motor (110V 50Hz):	1600W
Motor (240V 50Hz):	1600W
Speed No Load (110V):	3700 rpm
Speed No Load (240V):	3900 rpm
Max. Bevel (Left):	45°
Circular Saw Base:	Cast Aluminium
Cable Length:	3m
Blade Dia.:	185mm
No. of Teeth:	16
Bore:	20mm
Kerf:	1.7mm
Max. Depth of Cut (0°):	64mm (59mm w/Track)
Max. Depth of Cut (45°):	47mm (42mm w/Track)
Mild Steel Plate (Max. Thickness):	3mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Product Dimensions:	255mm x 375mm x 265mm
Packaging Dimensions:	380mm x 300mm x 250mm
Product Weight:	5.1kg
Packaged Weight:	8.3kg
Sound Pressure Level LPA:	94,3dB(A) K=3 dB(A)
Sound Power Level LWA:	105,3dB(A) K=3 dB(A)
Vibration - Main Handle (Sawing Wood):	Ah,w= 3,347m/s2
Vibration - Auxiliary Handle (Sawing Wood):	Ah,w= 3,119m/s2
Vibration - Main Handle (Sawing Metal):	Ah,M= 3,572m/s2
Vibration - Auxiliary Handle (Sawing Metal):	Ah,M= 3,241m/s2
Uncertainty K:	1,5m/s2

2800 Track Spec

Max. Material length:	2800mm (8ft.) (2x1400mm)
Product Dimensions (assembled):	11mm x 28000 x 182mm
Packaging Dimensions:	92mm x1526mm x 225mm
Product Weight:	4.7kg
Packaged Weight:	7.3kg
