Evolution R355CPS 355mm Chop Saw with TCT Multi-material Cutting Blade
Evolution's R355CPS is the ideal Chop Saw for everyone who works with metals, wood and plastics and needs a big bladed, powerful, stand-mounted chop saw to take care of heavy duty cutting needs.
Light enough to move between the works van and the job site and powerful enough to tackle big cuts up to 95mm x 180mm in heavy-duty materials the R355CPS is perfect for non-ferrous metals and mild steel as well as all plastics and wood.
Cuts faster and with less heat than a band saw and is safer than abrasive wheel cutting
Features

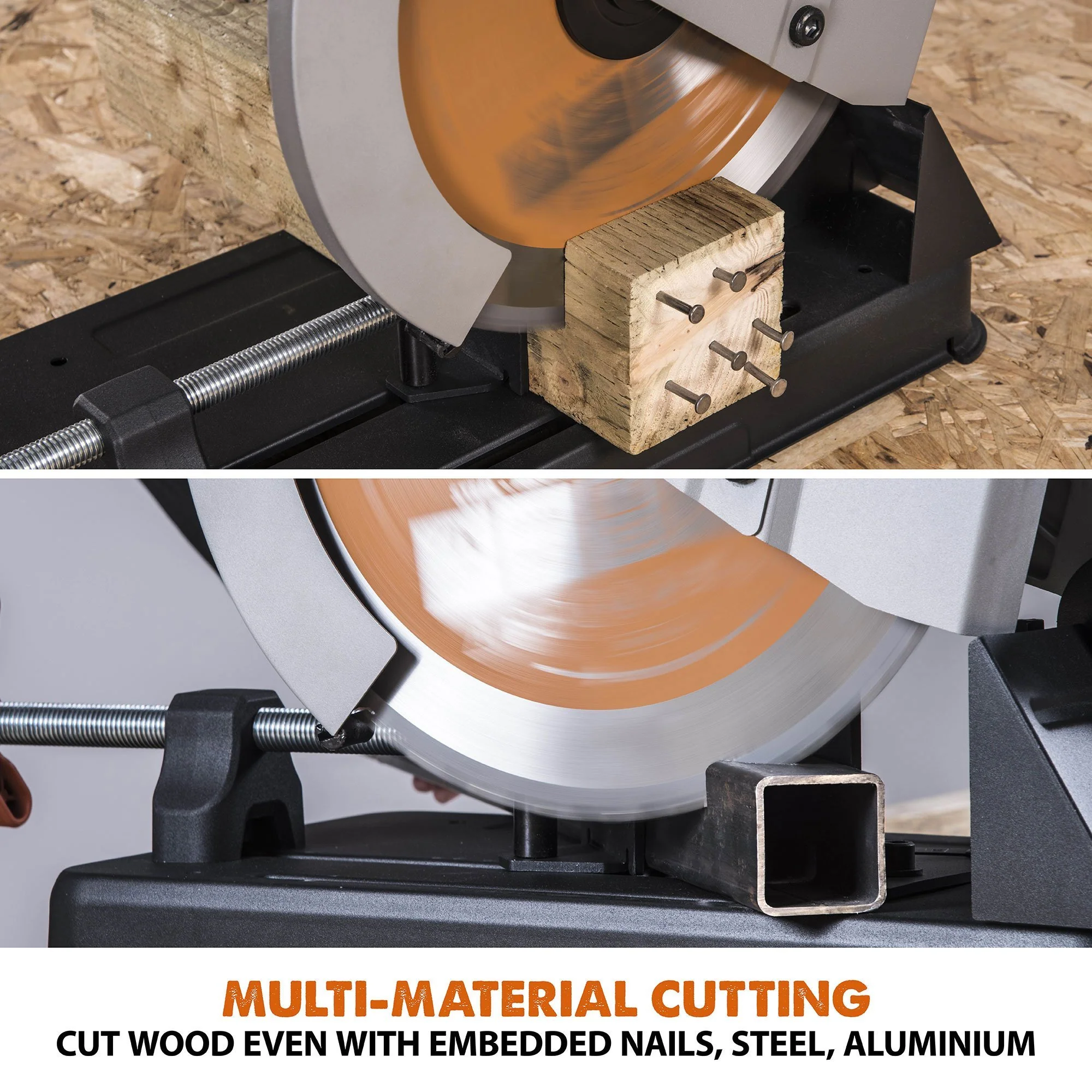

- Multi-material cutting technology
- The ultimate saw for every trade: one saw, one blade, cuts all*
- Quicker, safer, more accurate & economical than abrasive saws

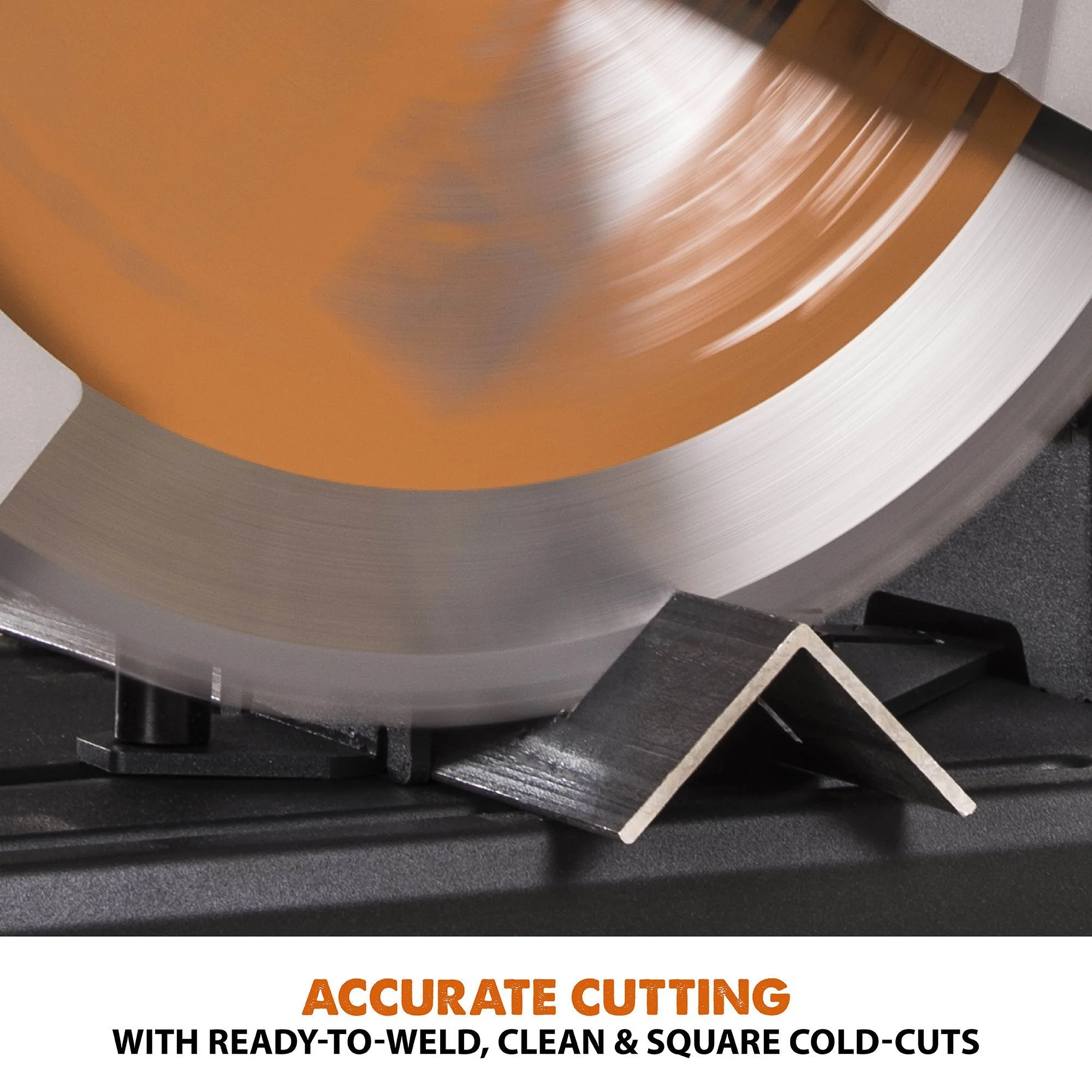

- Clean & consistent smooth cuts
- Max. rectangle: 95 x 180mm
- Max. square: 120 x 120mm
- Max. round: ø 130mm
- Fast action vice clamp can be adjusted in seconds
- Enables cuts to be made from 0° - 45°
- ‘Best-in-class’ guarantee of quality & performance
- Heavy-duty, sturdy pressed-steel base
- Rubber adjustable feet which reduce vibration and increases blade-life
- 3 Years limited warranty
- 2200W motor
- Hi-torque gearbox & blade system, increases motor & blade-life
Specifications
| Motor (230V 50Hz): | 2200W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 1550 min -1 |
| Max. Mitre: | 45° |
| Cable Length: | 2m |
| Blade Dia.: | 355mm |
| No. of Teeth: | 36 |
| Bore: | 25.4mm / 1 in. |
| Kerf: | 2.2mm |
| Max. Rectangle Tube (0° x 0°) | 95 x 180mm |
| Max. Rectangle Tube (0° x 45°) | 78 x 110mm |
| Max. Square Tube Cut (0° x 0°) | 120 x 120mm |
| Max. Square Tube Cut (0° x 45°) | 89 x 89mm |
| Max. Round Tube Cut (0° x 0°) | Ø 130mm |
| Max. Round Tube Cut (0° x 45°) | Ø 105mm |
| Mild Steel Plate - Max. Thickness | 6mm |
| Mild Steel Box Section - Max. Wall Thickness | 3mm |
| Minimum Cut Off Piece Length | 8mm |
| Packaging Dimensions: | 470 x 575 x 374mm |
| Product Dimensions: | 410 x 530 x 310mm |
| Product Weight: | 21.5 kg |
| Packaged Weight: | 23.85 kg |
| Sound Pressure Level LPA: | 100.5dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 97.3dB(A) K=3 dB(A) |
Items Supplied

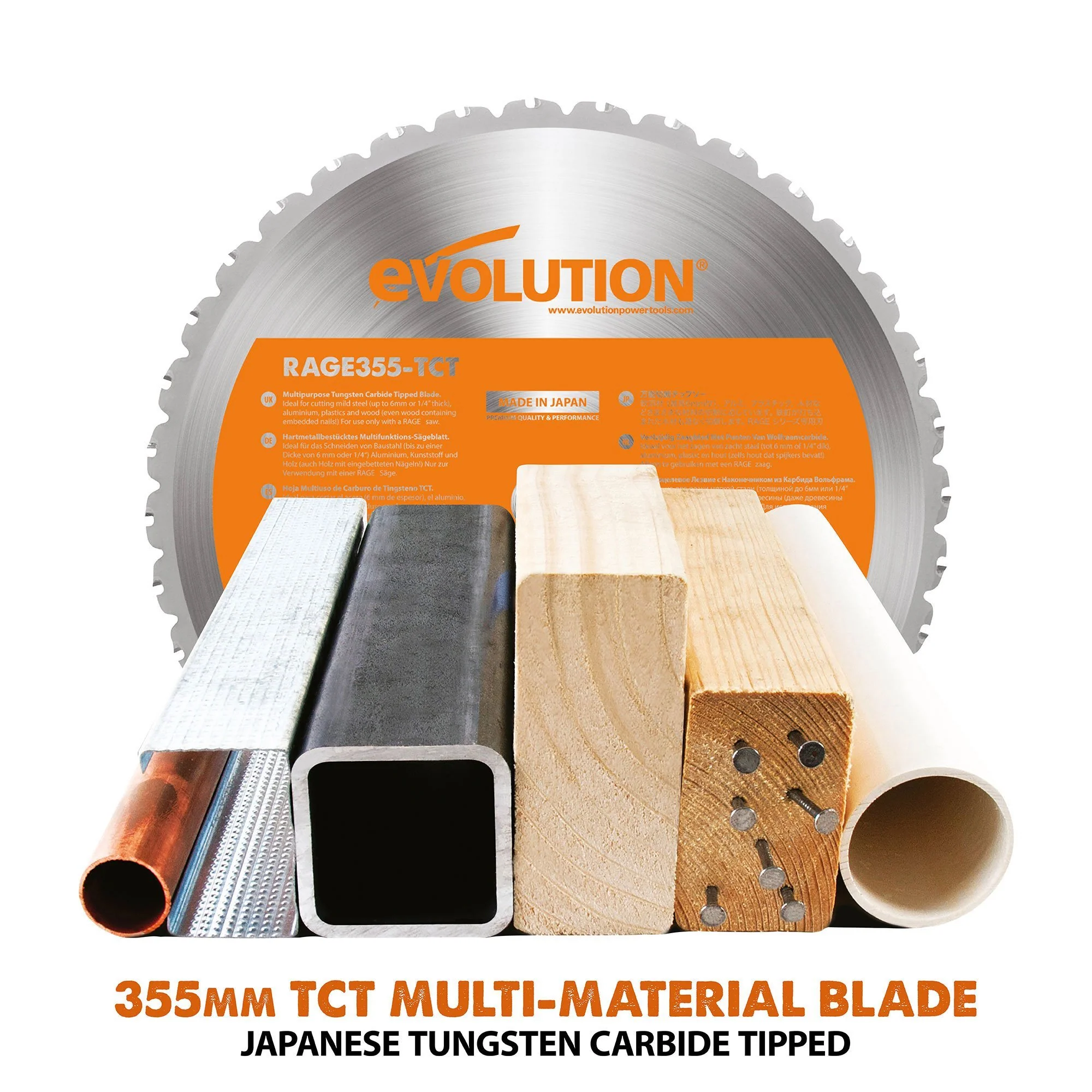

| 355mm Multi-Material Cutting TCT Blade (Fitted) |
| Instruction Manual |
| 8mm (Blade Change) Allen Key |
| V-Block |
Evolution's R355CPS is the ideal Chop Saw for everyone who works with metals, wood and plastics and needs a big bladed, powerful, stand-mounted chop saw to take care of heavy duty cutting needs.
Light enough to move between the works van and the job site and powerful enough to tackle big cuts up to 95mm x 180mm in heavy-duty materials the R355CPS is perfect for non-ferrous metals and mild steel as well as all plastics and wood.
Cuts faster and with less heat than a band saw and is safer than abrasive wheel cutting
Features
- Multi-material cutting technology
- The ultimate saw for every trade: one saw, one blade, cuts all*
- Quicker, safer, more accurate & economical than abrasive saws
- Clean & consistent smooth cuts
- Max. rectangle: 95 x 180mm
- Max. square: 120 x 120mm
- Max. round: ø 130mm
- Fast action vice clamp can be adjusted in seconds
- Enables cuts to be made from 0° - 45°
- ‘Best-in-class’ guarantee of quality & performance
- Heavy-duty, sturdy pressed-steel base
- Rubber adjustable feet which reduce vibration and increases blade-life
- 3 Years limited warranty
- 2200W motor
- Hi-torque gearbox & blade system, increases motor & blade-life
Specifications
| Motor (230V 50Hz): | 2200W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 1550 min -1 |
| Max. Mitre: | 45° |
| Cable Length: | 2m |
| Blade Dia.: | 355mm |
| No. of Teeth: | 36 |
| Bore: | 25.4mm / 1 in. |
| Kerf: | 2.2mm |
| Max. Rectangle Tube (0° x 0°) | 95 x 180mm |
| Max. Rectangle Tube (0° x 45°) | 78 x 110mm |
| Max. Square Tube Cut (0° x 0°) | 120 x 120mm |
| Max. Square Tube Cut (0° x 45°) | 89 x 89mm |
| Max. Round Tube Cut (0° x 0°) | Ø 130mm |
| Max. Round Tube Cut (0° x 45°) | Ø 105mm |
| Mild Steel Plate - Max. Thickness | 6mm |
| Mild Steel Box Section - Max. Wall Thickness | 3mm |
| Minimum Cut Off Piece Length | 8mm |
| Packaging Dimensions: | 470 x 575 x 374mm |
| Product Dimensions: | 410 x 530 x 310mm |
| Product Weight: | 21.5 kg |
| Packaged Weight: | 23.85 kg |
| Sound Pressure Level LPA: | 100.5dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 97.3dB(A) K=3 dB(A) |
Items Supplied
| 355mm Multi-Material Cutting TCT Blade (Fitted) |
| Instruction Manual |
| 8mm (Blade Change) Allen Key |
| V-Block |
Original: $239.98
-70%$239.98
$71.99Description
Evolution's R355CPS is the ideal Chop Saw for everyone who works with metals, wood and plastics and needs a big bladed, powerful, stand-mounted chop saw to take care of heavy duty cutting needs.
Light enough to move between the works van and the job site and powerful enough to tackle big cuts up to 95mm x 180mm in heavy-duty materials the R355CPS is perfect for non-ferrous metals and mild steel as well as all plastics and wood.
Cuts faster and with less heat than a band saw and is safer than abrasive wheel cutting
Features
- Multi-material cutting technology
- The ultimate saw for every trade: one saw, one blade, cuts all*
- Quicker, safer, more accurate & economical than abrasive saws
- Clean & consistent smooth cuts
- Max. rectangle: 95 x 180mm
- Max. square: 120 x 120mm
- Max. round: ø 130mm
- Fast action vice clamp can be adjusted in seconds
- Enables cuts to be made from 0° - 45°
- ‘Best-in-class’ guarantee of quality & performance
- Heavy-duty, sturdy pressed-steel base
- Rubber adjustable feet which reduce vibration and increases blade-life
- 3 Years limited warranty
- 2200W motor
- Hi-torque gearbox & blade system, increases motor & blade-life
Specifications
| Motor (230V 50Hz): | 2200W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 1550 min -1 |
| Max. Mitre: | 45° |
| Cable Length: | 2m |
| Blade Dia.: | 355mm |
| No. of Teeth: | 36 |
| Bore: | 25.4mm / 1 in. |
| Kerf: | 2.2mm |
| Max. Rectangle Tube (0° x 0°) | 95 x 180mm |
| Max. Rectangle Tube (0° x 45°) | 78 x 110mm |
| Max. Square Tube Cut (0° x 0°) | 120 x 120mm |
| Max. Square Tube Cut (0° x 45°) | 89 x 89mm |
| Max. Round Tube Cut (0° x 0°) | Ø 130mm |
| Max. Round Tube Cut (0° x 45°) | Ø 105mm |
| Mild Steel Plate - Max. Thickness | 6mm |
| Mild Steel Box Section - Max. Wall Thickness | 3mm |
| Minimum Cut Off Piece Length | 8mm |
| Packaging Dimensions: | 470 x 575 x 374mm |
| Product Dimensions: | 410 x 530 x 310mm |
| Product Weight: | 21.5 kg |
| Packaged Weight: | 23.85 kg |
| Sound Pressure Level LPA: | 100.5dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 97.3dB(A) K=3 dB(A) |
Items Supplied
| 355mm Multi-Material Cutting TCT Blade (Fitted) |
| Instruction Manual |
| 8mm (Blade Change) Allen Key |
| V-Block |
