R355CPS Chop Saw, Stand & Wood Blade Bundle

Evolution's R355CPS is the ideal Chop Saw for everyone who works with metals, wood and plastics and needs a big bladed, powerful, stand-mounted chop saw to take care of heavy duty cutting needs.

Light enough to move between the works van and the job site and powerful enough to tackle big cuts up to 95mm x 180mm in heavy-duty materials the R355CPS is perfect for non-ferrous metals and mild steel as well as all plastics and wood.

Cuts faster and with less heat than a band saw and is safer than abrasive wheel cutting

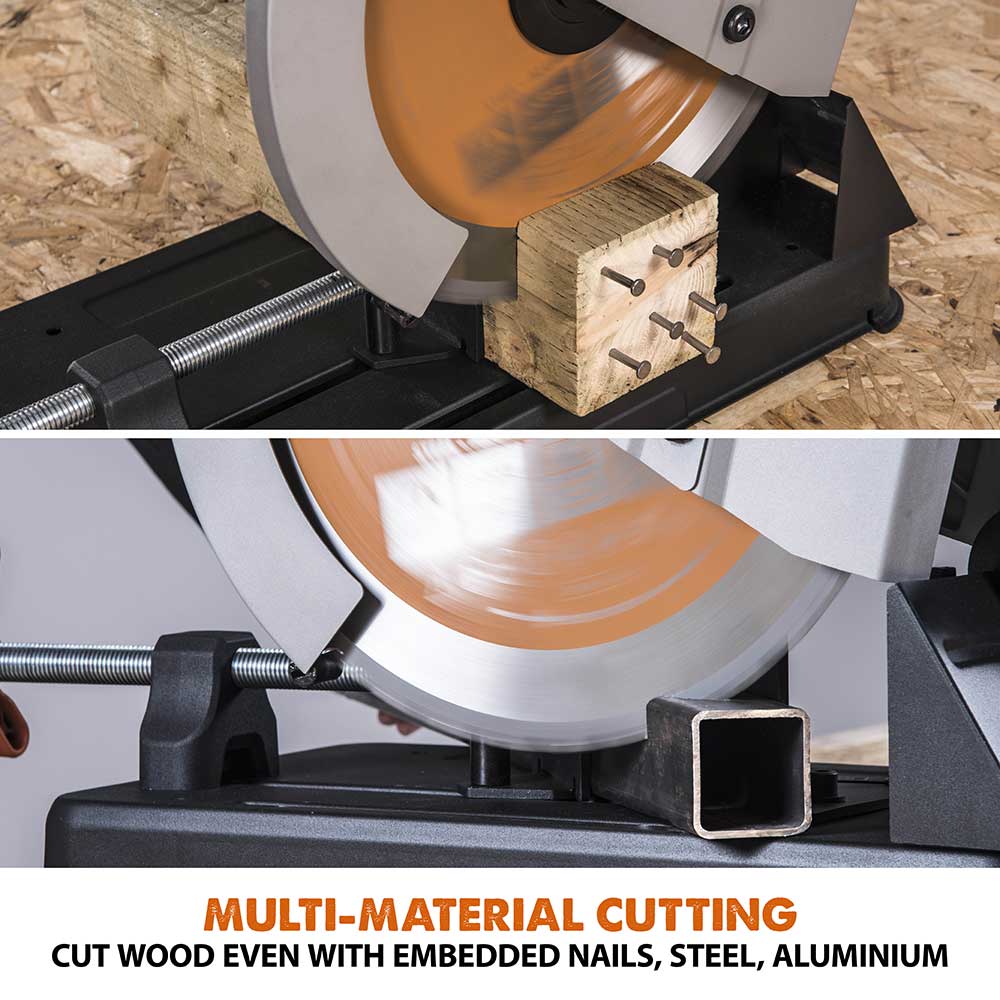

• Multi-material cutting technology
• The ultimate saw for every trade: one saw, one blade, cuts all*
• Quicker, safer, more accurate & economical than abrasive saws

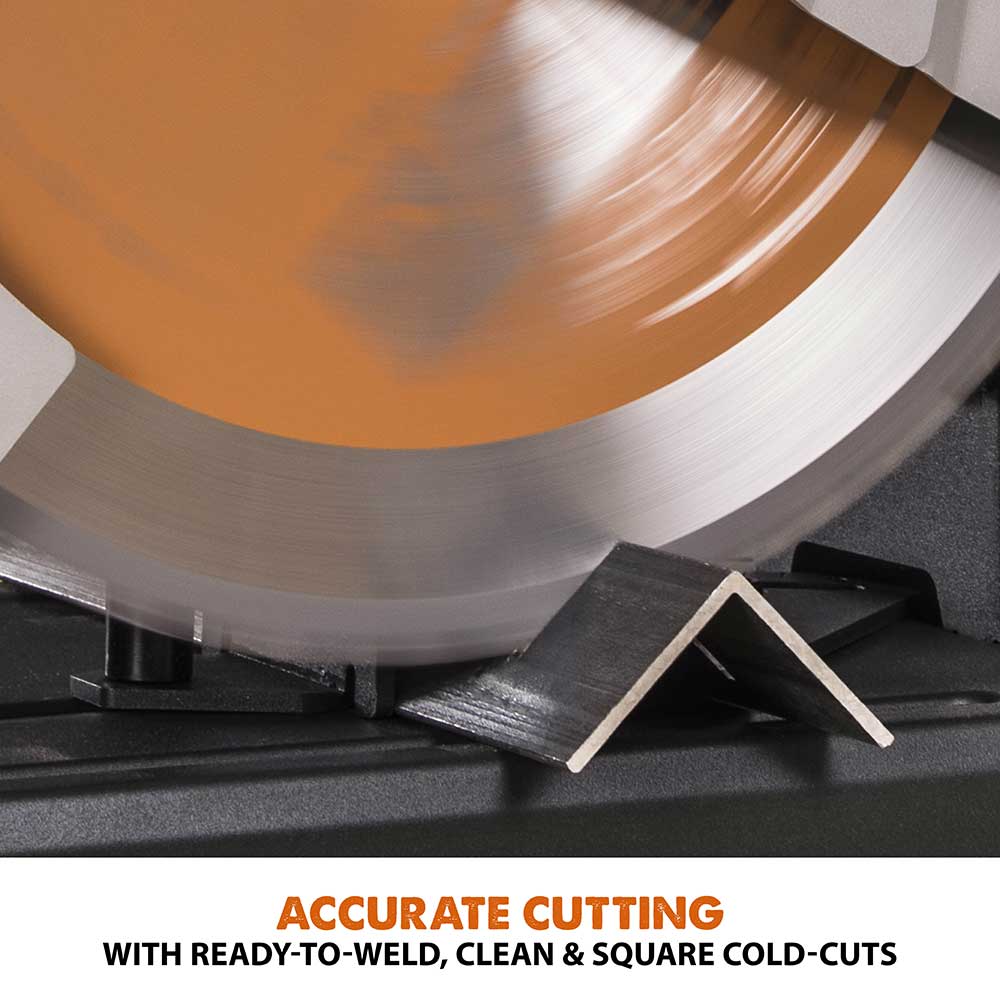

• Clean & consistent smooth cuts
• Max. rectangle: 95 x 180mm
• Max. square: 120 x 120mm
• Max. round: ø 130mm
• Fast action vice clamp can be adjusted in seconds
• Enables cuts to be made from 0° - 45°
• ‘Best-in-class’ guarantee of quality & performance
• Heavy-duty, sturdy pressed-steel base
• Rubber adjustable feet reduces vibration and increase blade-life
• 3 Years limited warranty
• 2200W motor
• Hi-torque gearbox & blade system increases motor & blade-life

Chop Saw Stand

Working with long, heavy steel tubes? Now you can take your chop saw anywhere with the sturdy and robust chop saw stand for versatile, portable cutting which can support up to 225kg.

• Universal fittings to fix most leading brand chop saws securely.

• Bespoke table height setting with adjustable legs from 595 - 815mm.
• Left and right work arms extend the workpiece support area up to 106cm.
• Built-in end stop, makes repeat cutting faster and easier than ever before.
• Telescopic and folding legs for easy storage and portability.
• Heavy-duty design built to support up to 225kg.
• 3-year guarantee.
• Compatible with the Evolution RAGE2, EVOSAW355, R355CPS and S355CPS chop saw models.

Specifications

R355CPS Chop Saw

Motor (240V 50Hz):	2200W
Motor (110V 50Hz):	1600W
Speed No Load:	1550 min -1
Max. Mitre:	45°
Cable Length:	2m
Blade Dia.:	355mm
No. of Teeth:	36
Bore:	25.4mm / 1 in.
Kerf:	2.2mm
Max. Rectangle Tube (0° x 0°)	95 x 180mm
Max. Rectangle Tube (0° x 45°)	78 x 110mm
Max. Square Tube Cut (0° x 0°)	120 x 120mm
Max. Square Tube Cut (0° x 45°)	89 x 89mm
Max. Round Tube Cut (0° x 0°)	Ø 130mm
Max. Round Tube Cut (0° x 45°)	Ø 105mm
Mild Steel Plate - Max. Thickness	6mm
Mild Steel Box Section - Max. Wall Thickness	3mm
Minimum Cut Off Piece Length	8mm
Packaging Dimensions:	470 x 575 x 374mm
Product Dimensions:	410 x 530 x 310mm
Product Weight:	21.5 kg
Packaged Weight:	23.85 kg
Sound Pressure Level LPA:	100.5dB(A) K=3 dB(A)
Sound Power Level LWA:	97.3dB(A) K=3 dB(A)

Chop Saw Stand

Table size:	460 x 600mm
Min. Chop Saw Base Width:	220mm
Max. Chop Saw Base Width:	322mm
Table Height:	595mm - 815mm
Footprint at floor:	834 x 963mm
Max. Load:	225kg
Product Weight:	16kg
