Evolution R255SMS+ 255mm Sliding Compound Mitre Saw & Evolution XL Rolling Mitre Saw Stand Bundle
This R255SMS+ Evolution Mitre Saw is built for accurate crosscut, bevel, mitre and trench cuts in wood, wood composite, plastics, and metal. Powered by a 2000W motor (240V), it comes with a 255mm tungsten carbide tipped (TCT) Multi-Material blade and has a 300mm x 80mm crosscut capacity and the ability to deliver cut accuracy within +/- 0.5˚, 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles.

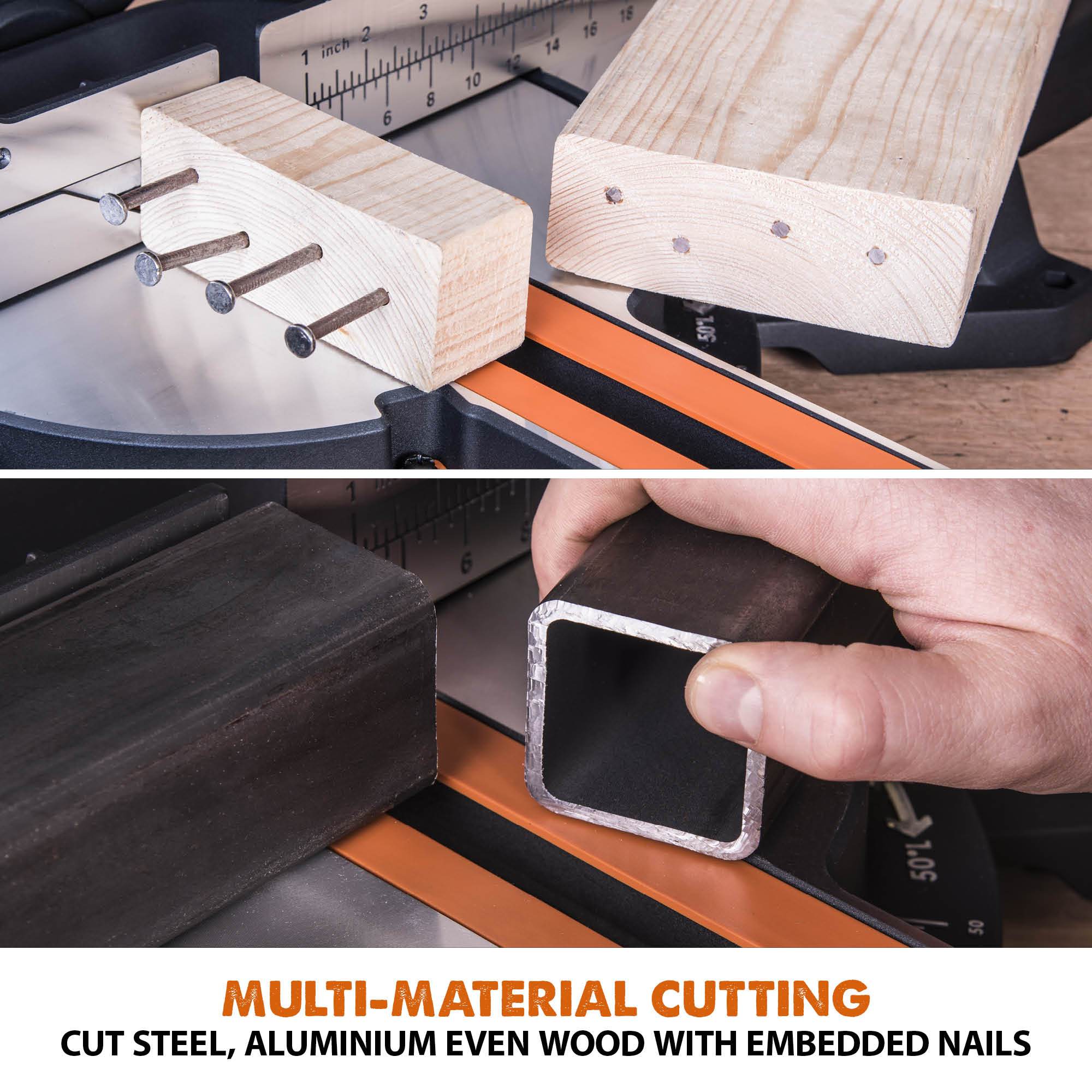

Trade-rated and approved the R255SMS+ Sliding Compound Mitre Saw is the ultimate tool on the job site. Paired with our new Heavy Duty PLUS Mitre Saw Stand it's the perfect portable jobsite Mitre Saw, ready to tackle the biggest jobs on-site or at home. Accuracy, power and reliability are at the forefront of its design, this 255mm compound sliding mitre saw is equipped to power through 6mm thick mild steel, and cut hardwood, laminate and even nail-embedded wood with precision.
The R255SMS+ compound mitre saw is a true workhorse with a max cross-cut of 300mm x 80mm. It's ready to cut almost anything with our Multi-Material blade, and the R255SMS+ can be used with any of our 255mm wood blades if you want a finer finish or faster cuts for those perfect crown mouldings and laser-precise joints.
Â

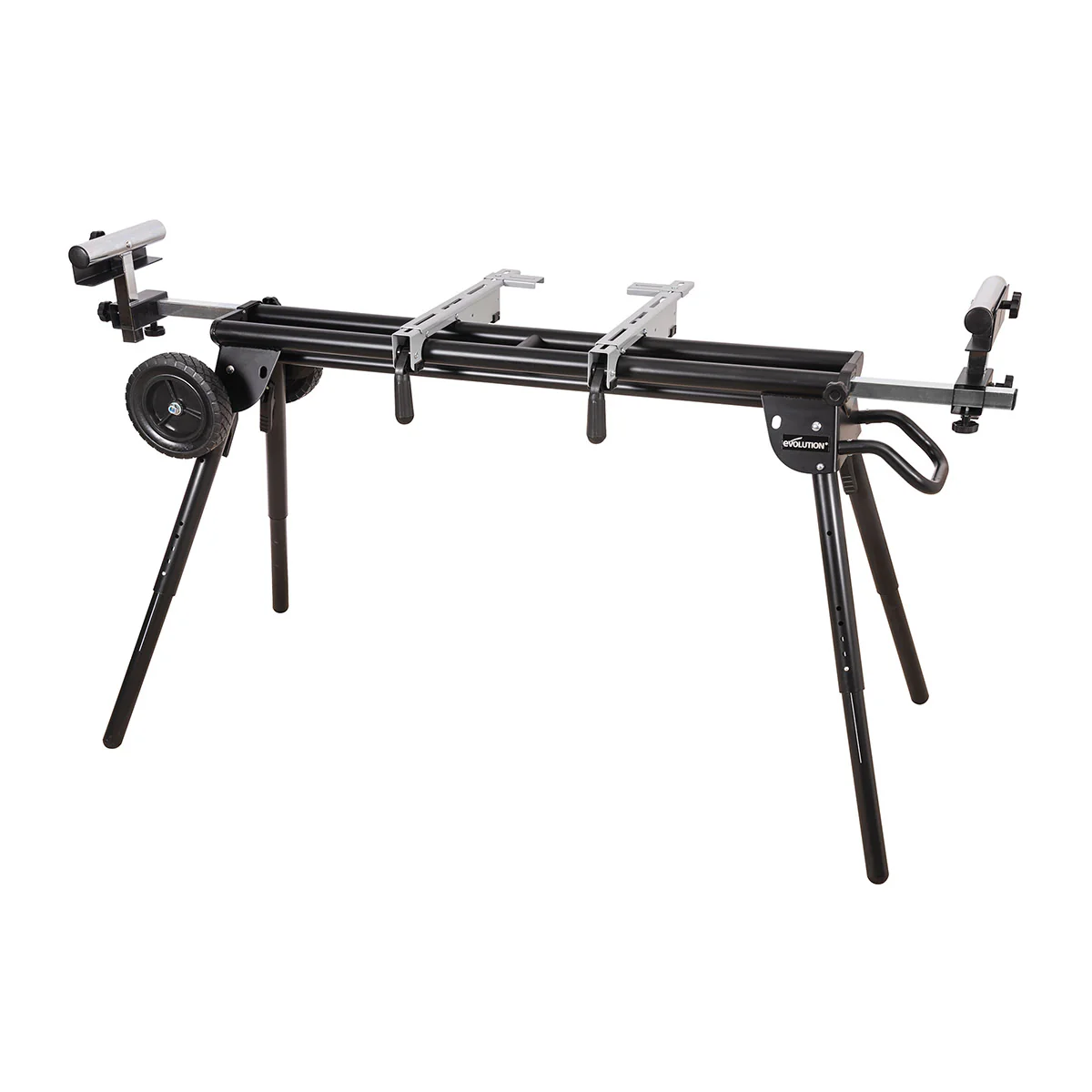

XL Rolling Mitre Saw Stand
The rolling XL version of Evolution's best-selling Mitre Saw Stand supports more weight, offers more stability, 5-position height adjustment, wheels for easy portability and almost universal compatibility with other manufacturers' Mitre Saw models. This versatile and portable Mitre Saw Stand is perfect for home, workshop and heavy-duty on-site use.
Equipped with wheels it's compact enough to be manoeuvred with one hand and it folds down to a compact 200mm x 270mm x 1400mm, saving you space when not in use.
The Heavy Duty Mitre Saw Stand PLUS can easily support up to 300kg, and long work-pieces up to 4m in length on its extendable arms, making it perfect for handling full length ceiling beams and floor joists. The quick-release mounting brackets allow the mounting of Mitre Saws with a hole fitment in the range of to 680mm x 370mm. While an included set of extender brackets allows this stand to be used with Mitre Saws that exceed these dimensions, making it truly versatile for all Mitre Saws from any brand.
Features
R255SSMS+ Features & Specifications
Compatible With

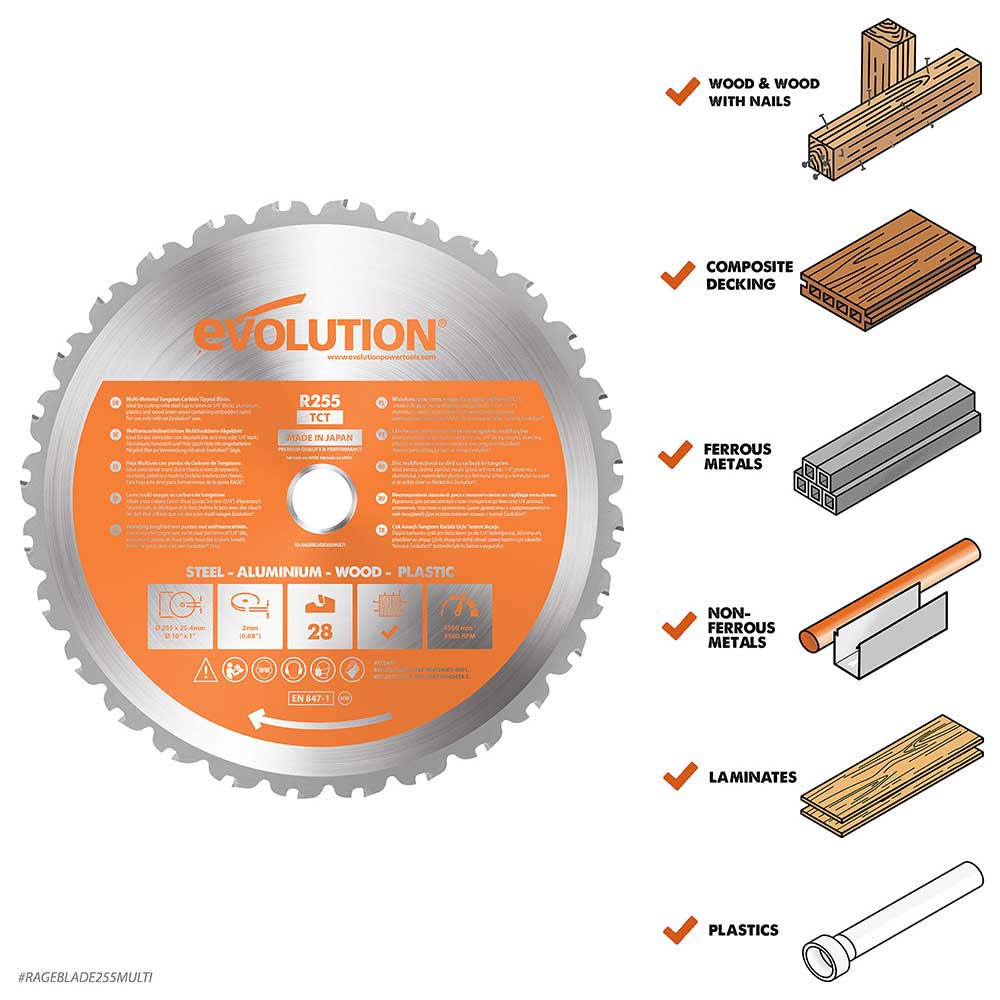

255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Â
Â
Features
Â
Specifications
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 2000W |
| Speed No Load: | 2500 min-1 |
| Max. Mitre: | 50° - 50° |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |
| Cable Length: | 3m |
| Blade Dia.: | 255mm |
| No. of Teeth: | 28 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Cross Cut (0° x 0°): | 300mm x 80mm |
| Max. Bevel Cut (0° x 45°): | 300mm x 45mm |
| Max. Mitre Cut (45° x 0°): | 210mm x 80mm |
| Max. Compound Cut (45° x 45°): | 210mm x 45mm |
| Mild Steel Plate (Max. Thickness): | 6mm |
| Mild Steel Box Section (Max. Wall Thickness): | 3mm |
| Product Dimensions: | 360mm x 705mm x 730mm (with saw head down) |
| Packaging Dimensions: | 365mm x 565mm x 520mm |
| Product Weight: | 15.3 kg |
| Packaged Weight: | 18.5 kg |
| Sound Pressure Level LPA: | 110V: 95.8 dB(A) / 220-240V: 95.8dB(A) |
| Sound Power Level LWA: | 110V: 108.8 dB(A) / 220-240V: 108.8dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
| Laser Class: | Class 2 |
| Laser Source: | Laser Diode |
| Laser Output Power (Max): | <1mW |
| Wave Length (Nm): | 650 |
