Evolution F255SMS 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade (230v)
The F255SMS Sliding mitre Saw is our price fighting 255mm

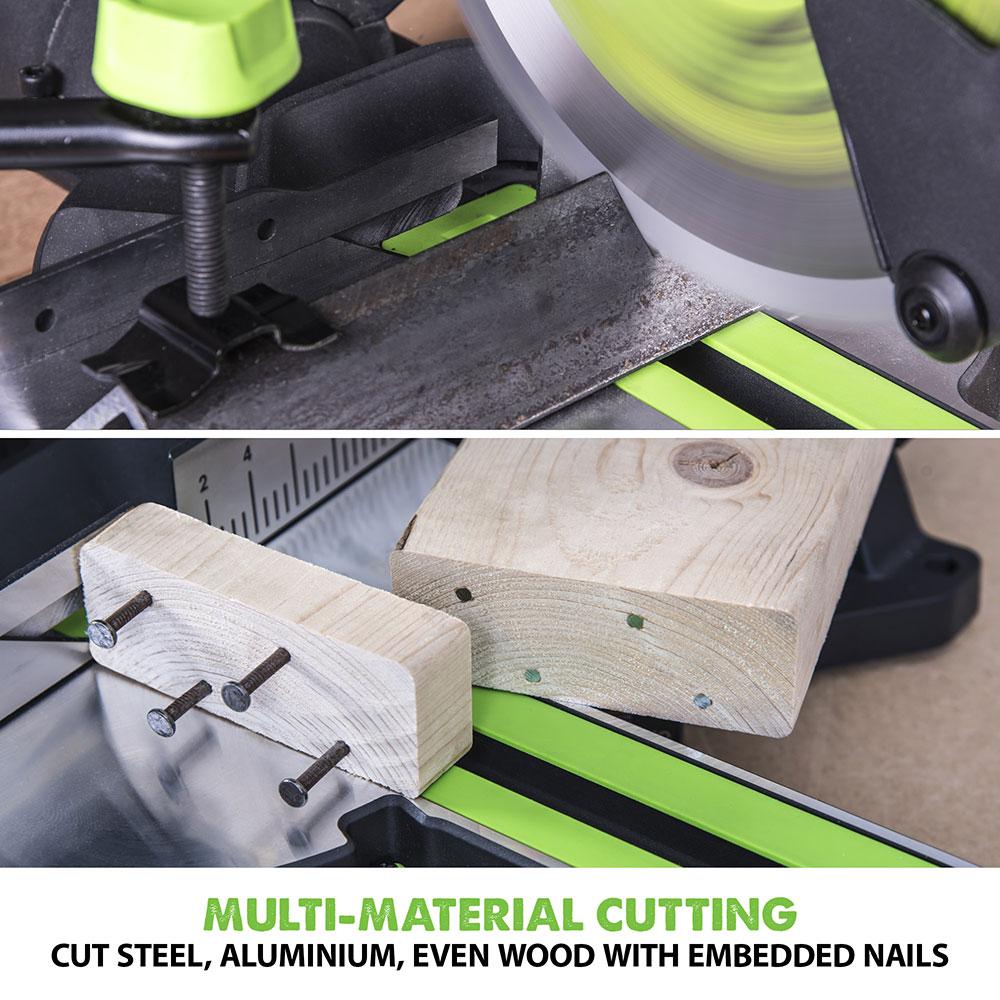

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
- Smooth, square, reliable cutting every time in a variety of materials.
- Powerful 1600W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
- Cuts to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ mitre both left and right to perform precise bevel, mitre and compound cutting.
- A huge crosscut capacity enables you to trim skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
- Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
| Motor (240V 50Hz): | 1600W |
| Speed No Load: | 2500 rpm |
| Max. Bevel (Left): | 45° |
| Max. Mitre: | 50° - 50° |
| Cable Length: | 2m |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Cross Cut (0° x 0°): | 300mm x 80mm |
| Max. Bevel Cut (0° x 45°): | 300mm x 45mm |
| Max. Mitre Cut (45° x 0°): | 210mm x 80mm |
| Max. Compound Cut (45° x 45°): | 210mm x 45mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 360mm x 705mm x 730mm |
| Packaging Dimensions: | 565mm x 365mm x 520mm |
| Product Weight: | 15.3 kg |
| Packaged Weight: | 17.6 kg |
| Sound Pressure Level LPA: | 110V: 95.8 dB(A) / 220-240V: 95.8dB(A) |
| Sound Power Level LWA: | 110V: 108.8 dB(A) / 220-240V: 108.8dB(A) |
| Uncertainty K: | KpA & KWA: K=3 dB(A) |
Items Supplied
| Machine Table Extensions |
| Double Ended Hex Key (M6 & M5) |
| Rotary Table And Neck |
| Cutting Head |
| Carriage Slides |
| Mitre Locking Knob |
| Mains Cable Guide/Clamp |
| Self Tapping Cap Screw |
| Socket Headed Screws |
| Cable Clamp Component |
| Laser Lens Cap |
| Double Ended Cable Clip |
| 2pc Hold Down Clamp |
| 24T Multi-Material TCT Blade |
Compatible With
255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
