Evolution FURY5-S 255mm Table Saw With TCT Multi-Material Cutting Blade (230v)
The FURY5-S Multipurpose Table Saw is designed for the home workshop and comes equipped with our F255TCT-24T Multi-Material blade that will make light work of any material. Slice through wood, plastic, and metal. With the powerful 1500W motor and hi-torque gearbox, the FURY5-S Multipurpose Table Saw is ready to help you take on the biggest jobs.

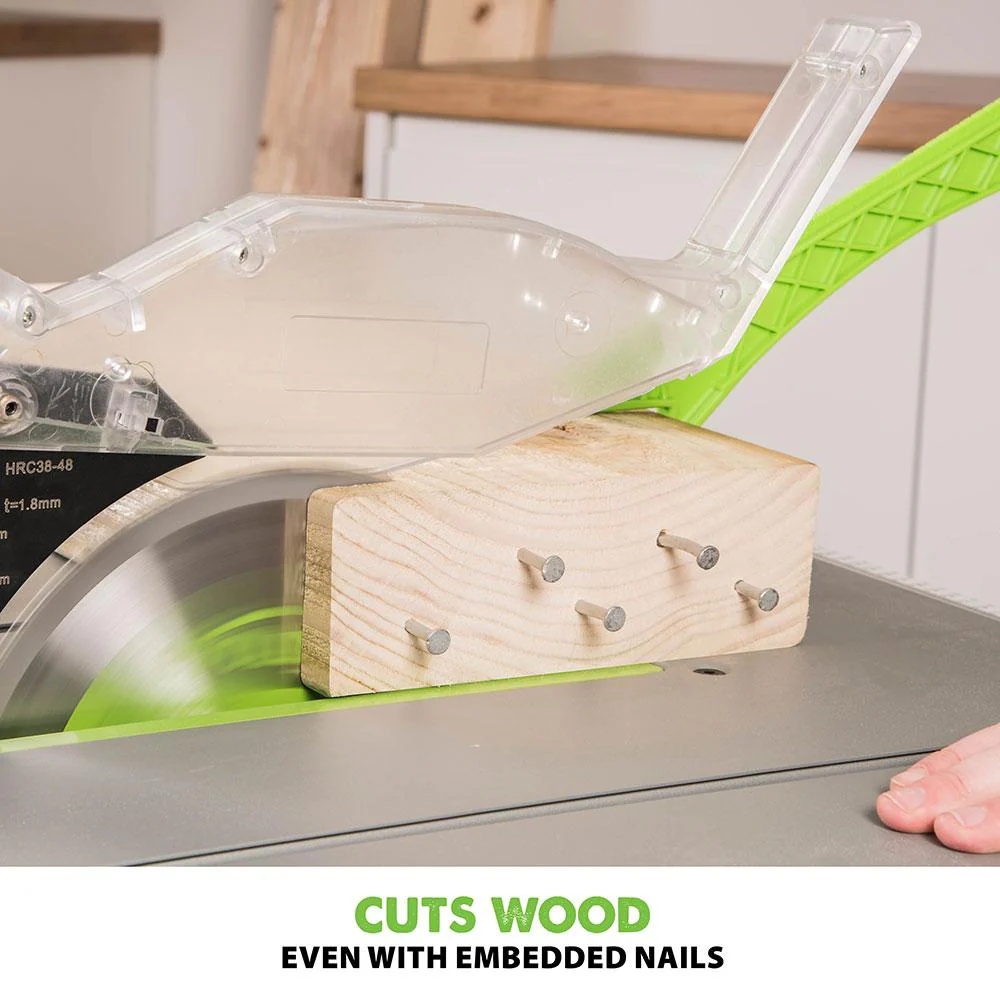

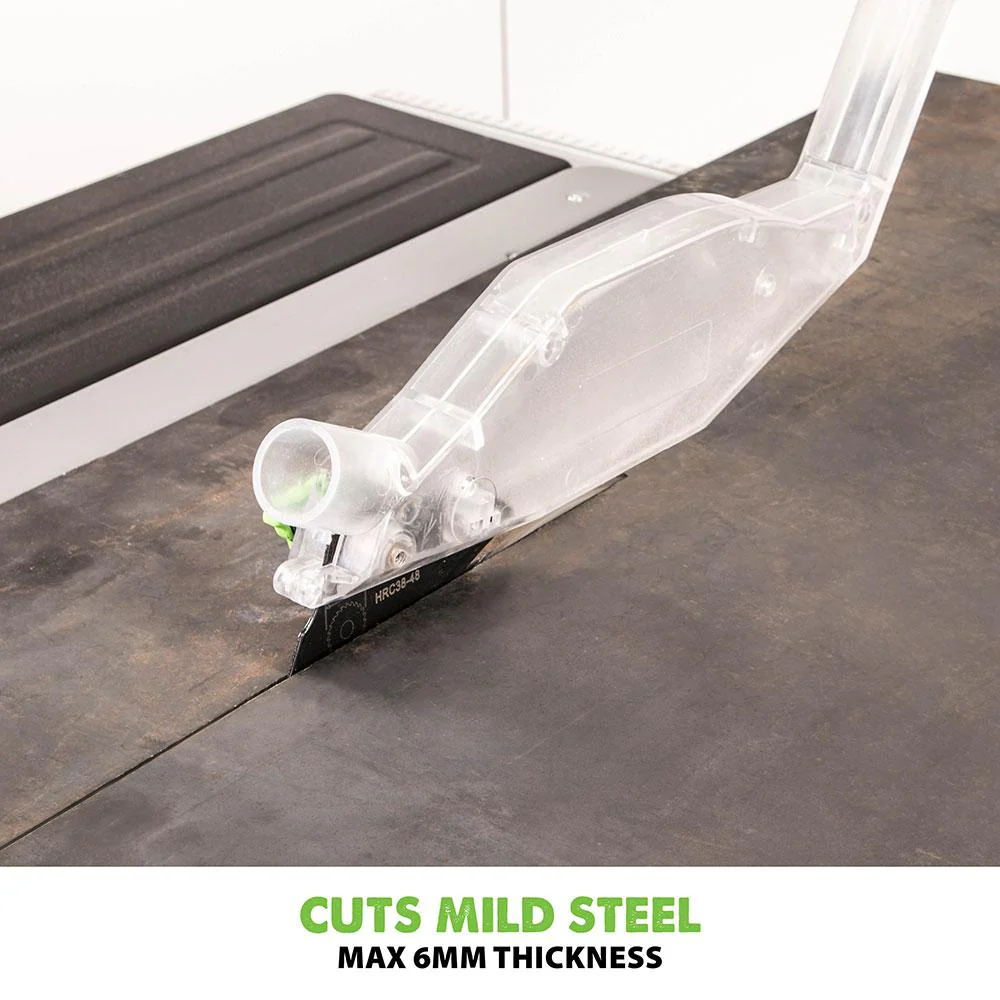

Powerful, with its high-torque motor and tungsten-carbide-tipped TCT 24T blade, it’s the most versatile multi-material cutting table saw you can buy for the money. The FURY5-S will easily cut steel, aluminium, wood, even wood with embedded nails and plastic, using just one blade. Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials. It’s the perfect tool for the keen home diyer.
Whether you’re cutting bevels, mitres, or simply need big sheet handling ability with precision the FURY5-S has the features you want. Adjustable rails, sliding guards, angled mitre guide slide with anti-bounce feature as well as ports for vacuum extraction, there’s nothing we’ve left out.
Features
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate rip cutting, assisted by an adjustable parallel fence with measuring rail guide.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1500W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt and 60˚ - 60˚ mitre fence covers all common, compound cutting angles.
- 85mm depth of cut at 90˚ and 65mm depth of cut at 45˚.
- Integrated Dust port compatible for vacuum dust extraction.
- Compact & lightweight design with a 938mm x 642mm table surface.
- Easy access On/Off safety switch.
- Push Stick included for safer operation when handling smaller offcuts.
- 3 Year limited warranty.
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
| Motor (240V 50Hz): | S1: 1300W, S6 40%: 1500W |
| Speed No Load: | 3250rpm |
| Max. Bevel (Left): | 45° |
| Riving Knife Thickness | 1.8mm |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 65mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Rip Capacity - Right of the blade | 410mm |
| Product Dimensions: | 930mm x 642mm x 938mm |
| Table Dimensions | 642mm x 938mm |
| Packaging Dimensions: | 710mm x 320mm x 560mm |
| Product Weight: | 20.25 kg |
| Packaged Weight: | 23 kg |
Items Supplied
| 24T Multi-Material TCT Blade |
| Hex Key (Blade Change) |
| Table Extensions |
| Table Extension Support Struts |
| Leg Set (4 corner Legs) |
| Cross Braces |
| Rubber Feet |
| Blade Guard with Extraction Port |
| Dust Hose Connector |
| Mitre Gauge |
| Anti-Bounce Device |
| Adjustable Rip Fence |
| Rear Cantilever Braces |
| Push Stick |
| Fence Rail (2 piece) |
| Fence Rail Joining Tongue |
| Blade Changing Spanners (2pc) |
| Assorted fixings |
Compatible with
FW255TCT-60 255mm, 60T Fine Wood Blade
GW255TCT-40 255mm, 40T General Wood Blade
FURYBLADE255MULTI 255mm, 24T Multi-material Blade
RAGEBLADE255MULTI 255mm, 28T Multi-material Blade
