Evolution RAGE4 - 185mm Chop Saw with TCT Multi-material Cutting Blade
The Evolution RAGE4 185mm chop saw is designed exclusively for Electricians, Plumbers, Scaffolders, HVAC engineers and Data system and security installers. Producing fast, ultra-clean cuts through armoured cable, Unistrut and cable tray, as well as conduit, chrome, copper, mild steel & plastic pipe. The RAGE4 is easier to use than a hacksaw, cleaner than a grinder and far more portable than a 14" (355mm) chop saw.
Features:

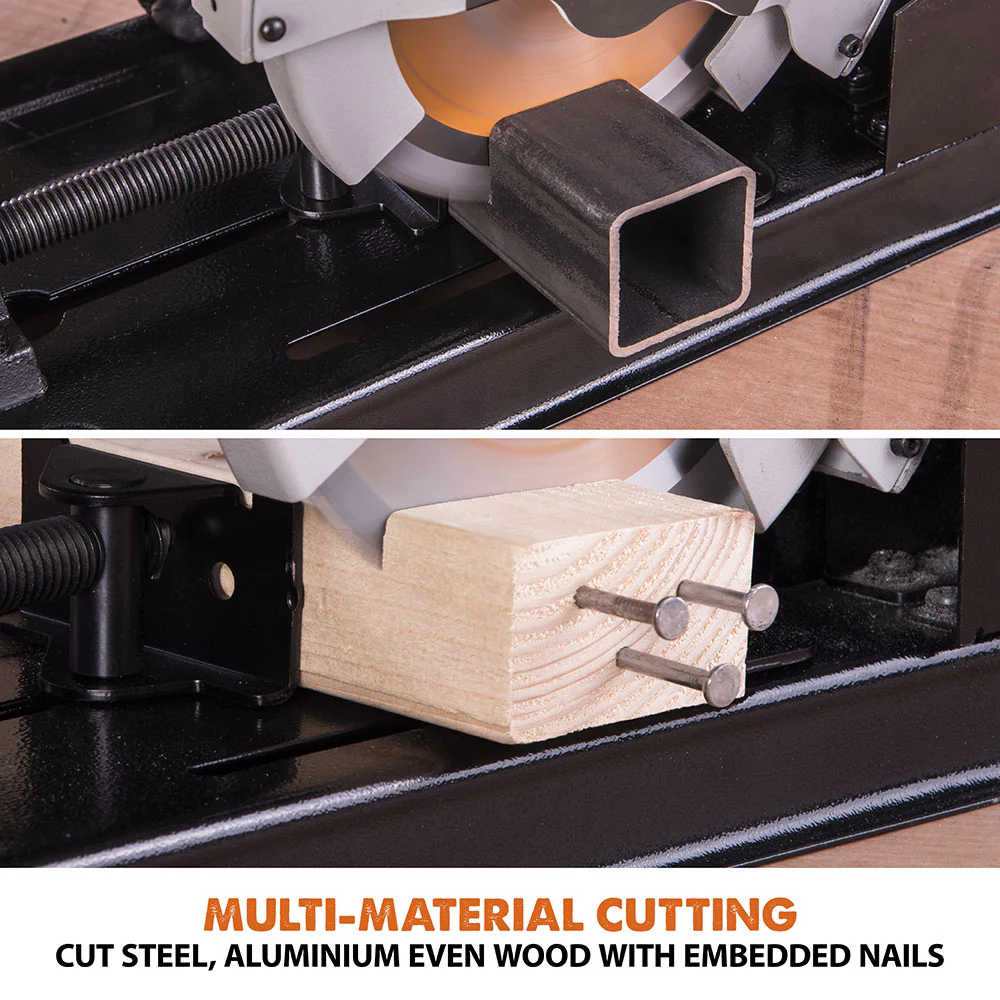

- Multi-Material cutting technology. One saw, one blade, cuts all.*

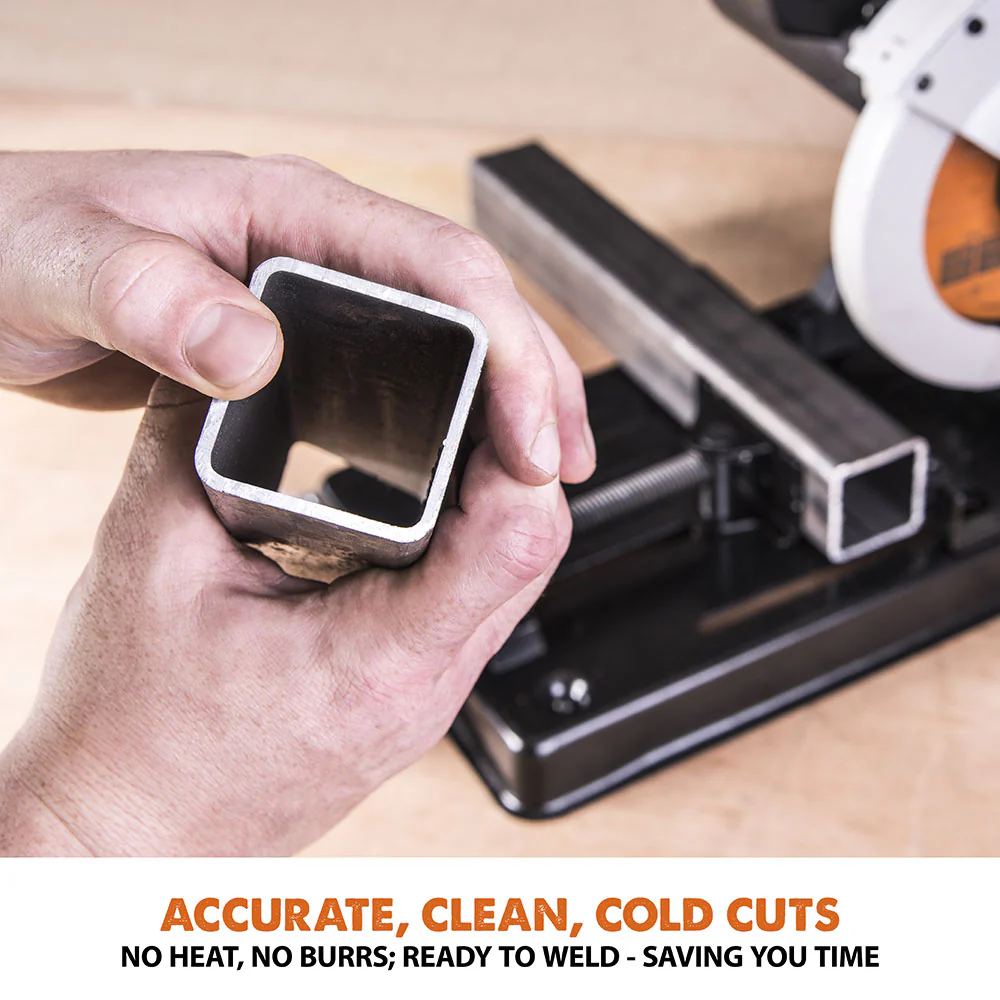

- Accurate cutting - cuts mild steel with clean & square cold-cuts.
- Unlike abrasive cutting, the RAGE4 TCT blade cuts cold with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish.

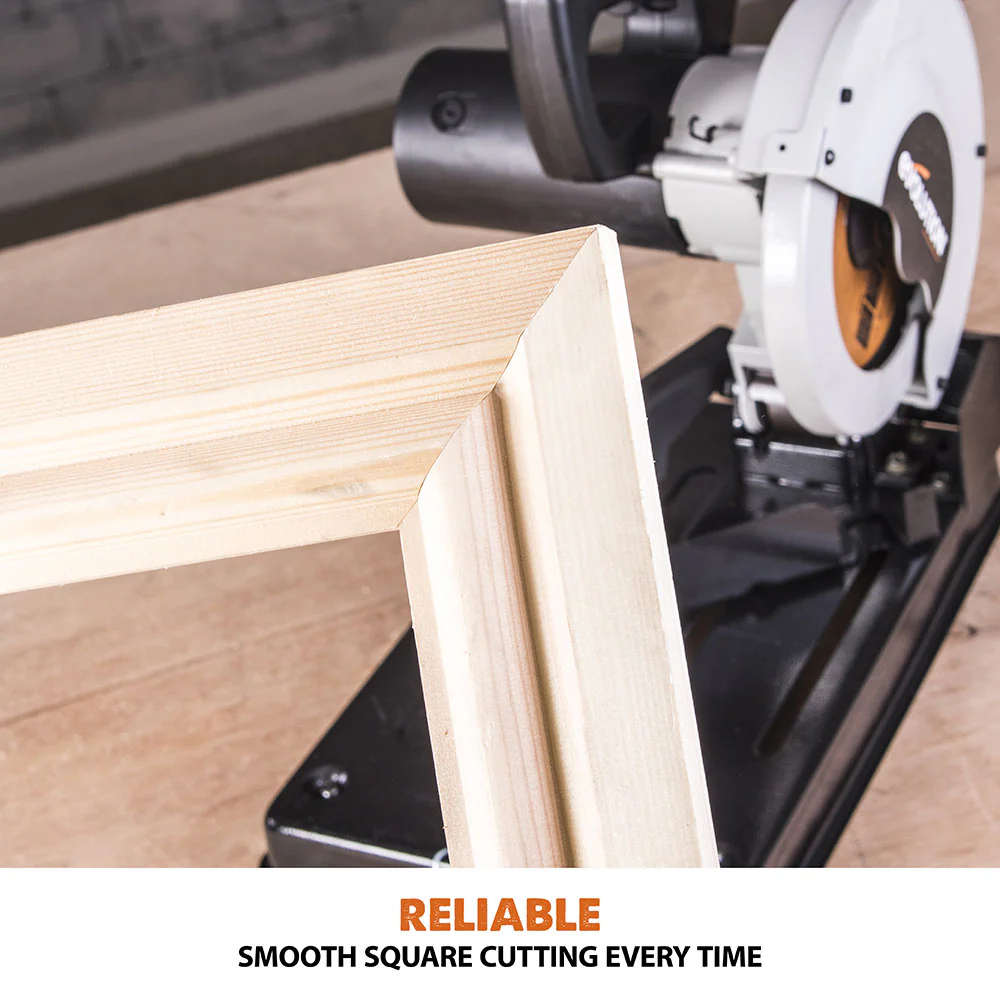

- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1250W hi-torque motor with optimised gearbox & blade system.
- Accurate & durable vice portability with 0˚ - 45˚ mitre detents.
- A robust, durable base - ideal when handling heavy-duty, metallic applications.
- Lightweight, easy to transport, taking up little space, weighing only 9.1kg.
- Versatile, repositionable fence for cutting of round, square & rectangle materials.
- Chip guard & dust extraction port for added safety & cleaner working environment.
- Compatible with the Evolution 185mm Diamond blade for cutting stone, concrete, and brick. (Sold separately).
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
- *Not compatible with the Chop Saw Stand
Specifications
| Motor (110V 50Hz): | 1250W |
| Motor (240V 50Hz): | 1250W |
| Speed No Load: | 4500min-1 / RPM |
| Max. Mitre: | 45° |
| Blade Dia.: | 185mm |
| No. of Teeth: | 20 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 45 x 97mm |
| Max. Mitre Cut (45° x 0°): | 40 x 40mm |
| Max Round Tube (0° x 0°): | 50mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 255mm x 381mm x 267mm |
| Packaging Dimensions: | 510mm x 320mm x 310mm |
| Product Weight: | 9.1kg |
| Packaged Weight: | 10.2kg |
| Sound Pressure Level LPA: | 93dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 106dB(A) K=3 dB(A) |
| Vibration Level: | 4,5m/s2 |
| Uncertainty K: | 1,5m/s2 |
Compatible With
185mm Multi-Material Cutting TCT Blade
