Features

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
• Reliable smooth square cutting every time in a variety of materials.

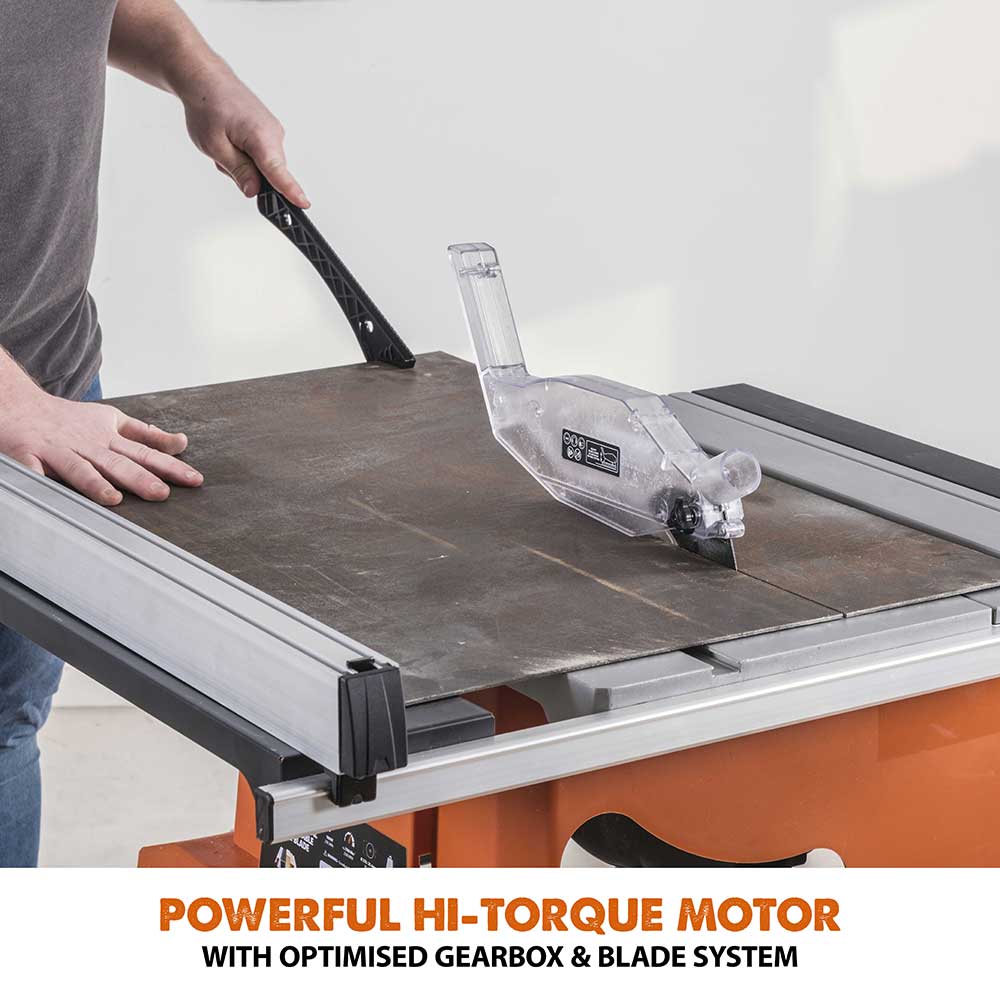

• Powerful hi-torque motor with an optimized gearbox & blade system.
• 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.
• 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.
• Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).

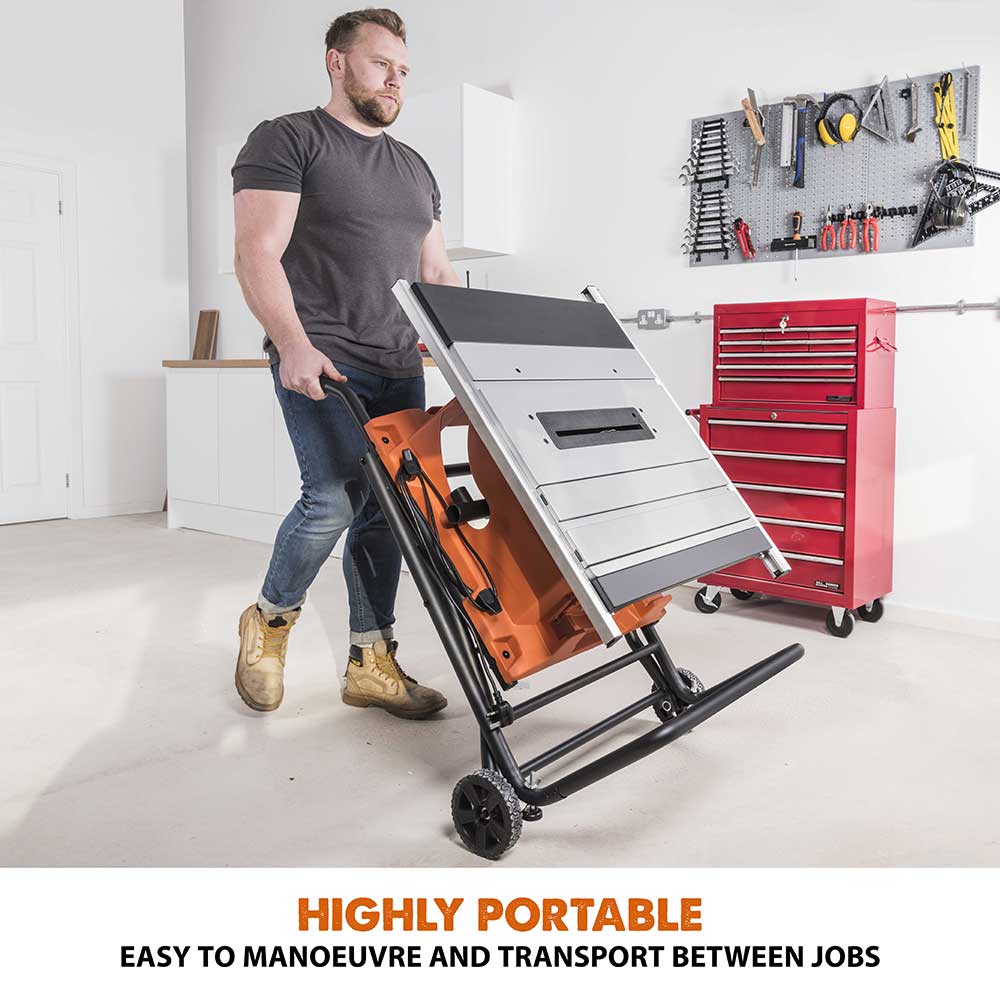

• Collapsible frame with wheels for easy storage and portability.
• The table surface extends to the right, to support wide work-pieces with a table surface area of 1020mm x 640mm when fully extended.
• 1.5m durable cable with the built-in storage cable holder.
• Push Stick included for safer operation when handling smaller offcuts.
• 3 Year limited warranty.
• Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.

Specifications

Motor (240V 50Hz):	1500W
Motor (110V 50Hz):	1600W
Speed No Load:	2500rpm
Max. Bevel (Left):	45°
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Depth of Cut (0°):	83mm
Max. Depth of Cut (45°):	58mm
Mild Steel Plate (Max. Thickness):	6mm
Rip Capacity - Right of the blade	605mm
Rip Capacity - Left of the blade	305mm
Riving Knife Thickness	1.8mm
Product Dimensions:	(With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions:	(Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions	1020mm x 640mm
Min. Table Dimensions	745mm x 640mm
Packaging Dimensions:	910mm x 370mm x 750mm
Product Weight:	28.5 kg
Packaged Weight:	33.5 kg
Sound Pressure Level LPA:	93,2dB(A) K:3dB(A)
Sound Power Level LWA:	106,2dB(A) K=3 dB(A)

Items Included

24T Multi-Material TCT Blade

Blade Guard with Extraction Port

Mitre Gauge

Anti-Bounce Device

Adjustable Rip Fence

Push Stick

Blade Changing Spanners

Assorted fixings
